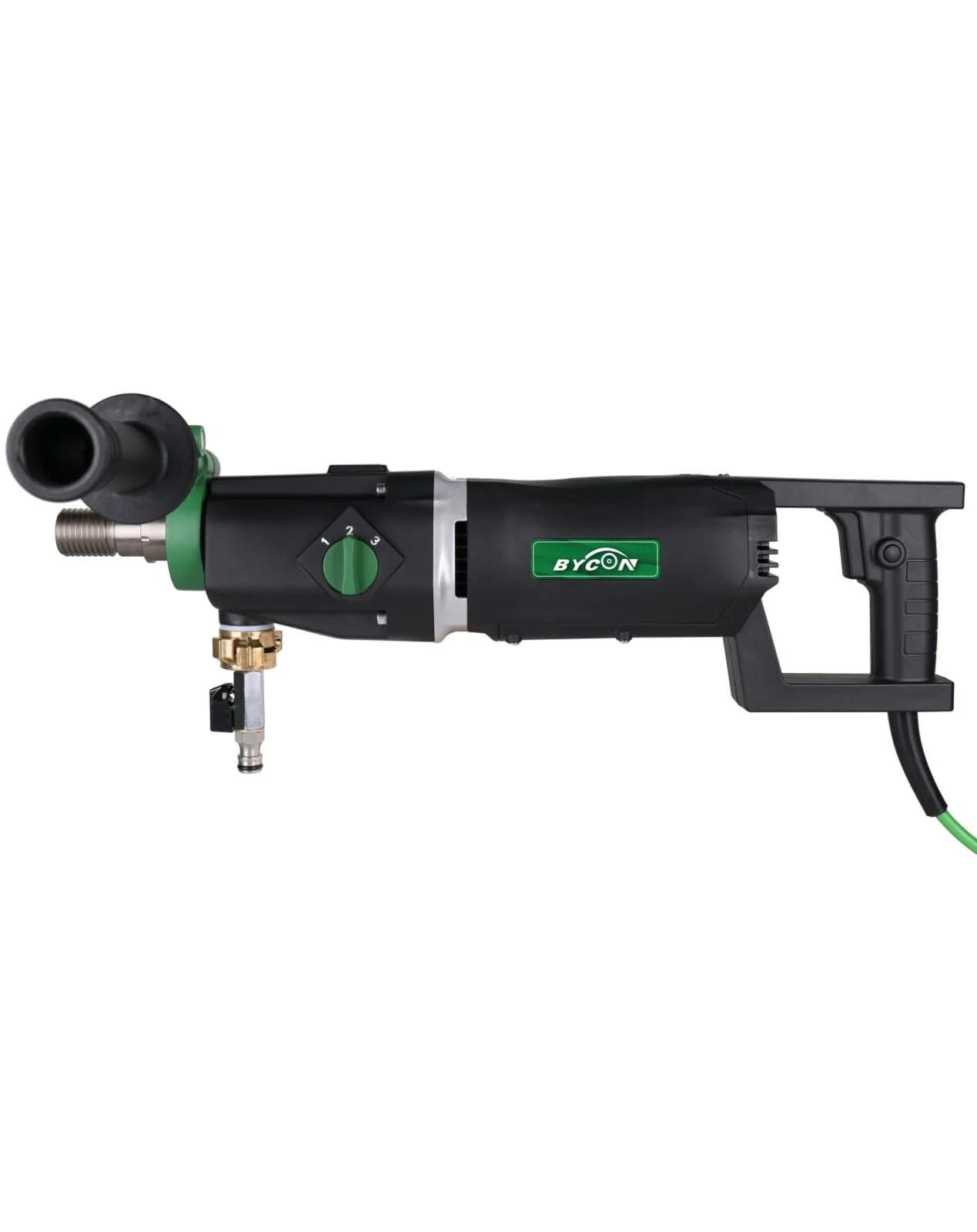

Bycon Hand Held Core Drill Motor DMP-202BD

Key Features

Brushless Motor: High-efficiency design with reduced maintenance and extended lifetime
Smart LED Indicator: Provides alerts for overload, overheating, and carbon brush maintenance
3-Speed Gearbox: 510 / 1450 / 3000 rpm for controlled performance across a range of diameters
Handheld or Rig Use: Can be used freehand or mounted on DSP-162 / DSP-252 drill stands
High Torque Stability: Maintains consistent performance in reinforced concrete
Technical Specifications
Power Output: 2600 W
Voltage / Frequency: 220 V / 50 Hz or 120 V / 60 Hz
Current: 14 A (220 V) / 25 A (120 V)
No-Load Speeds (Gear 1 / 2 / 3): 510 / 1,450 / 3,000 rpm
Drilling Diameter (Gear 1 / 2 / 3): Ø202 mm / Ø132 mm / Ø76 mm
Max Drilling Diameter: Ø202 mm
Spindle Thread: 1¼″ UNC
Weight: 6.65 kg
Compatible Drill Stands: DSP-162 / DSP-252
